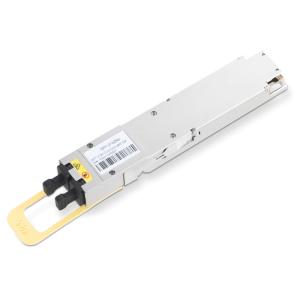

NVIDIA/Mellanox MMS4A00-XM Compatible 1.6T 2xDR4/DR8 InfiniBand XDR Silicon Photonics Optical Transceiver Module(Twin-port OSFP224, 1310nm, 500m (OS2) , Dual MPO-12/APC, DOM, for SMF, IHS/Finned Top)

NADDOD OSFP-1.6T-2xDR4H Optical Transceiver Module is an InfiniBand and Ethernet 1.6Tb/s 2x800Gb/s Twin-port OSFP224, 2xDR4/DR8 single mode, Silicon photonics-based, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 800Gb /s each. The parallel single mode, data center reach 8-channel (2xDR4/DR8) design uses 200G-PAM4 modulation and has a maximum fiberreach of 500-meters using 8 single mode fibers. The main application for OSFP-1.6T-2xDR4H is linking two switches together with up to 500 meters.

Feature:

• 100% verified by the original, perfectly compatible with NVIDIA Quantum-X800 Q3400-RA XDR switch devices.
• Maximum power consumption 26W.
• 8x 200G-PAM4 electrical modulation.
• SiPh technology for cost-efficient, low power, high capacity.
• Built-in 3nm DSP, providing stable transmission performance.
• Compliant with OSFP MSA, IEEE 802.3dj_D1.1 protocol and CMIS 5.2.
• 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

Specificiation

Application:

Unleash HPC Power with InfiniBand Architecture

We provides the Infiniband network solution, offering significant advantages in terms of high-speed, low latency, scalability, and efficiency.

Flat Top OSFP Connector Shell

The OSFP shell has a flat top and is used in adapters, such as ConnectX-7 InfiniBand Adapter Cards.
